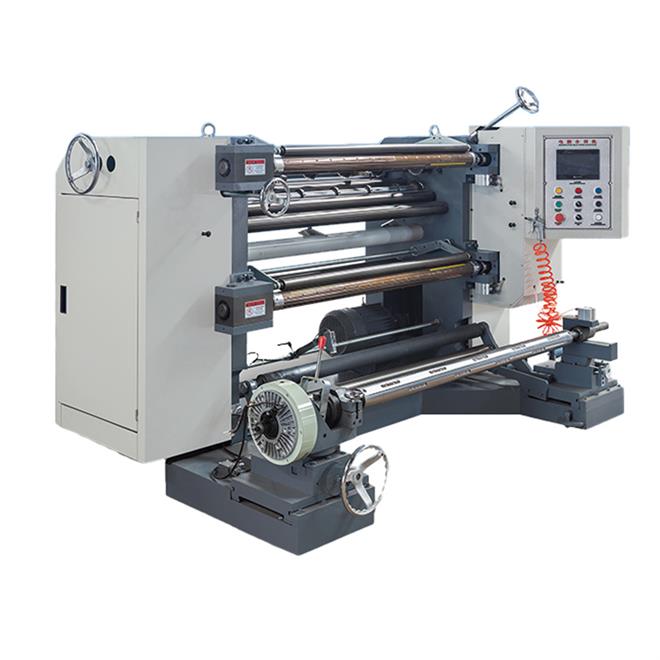

Slitting Rewinder

The main electric control system adopts center computer control(PLC), person-machine interface operation, dynamic display. Equipped with PLC and touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.

Email: [email protected]

WhatsApp / Phone: +8617739786040

SEND Inquiry Chat Online

Scope of application Technical Parameter Performance and Features

Scope of application

Technical Parameter

Model	HF-700	HF-1100	HF-1300
Coil width	700mm	1100mm	1300mm
Unwinding diameter	Φ600mm	Φ600mm	Φ600mm
Rewinding diameter	2x Φ420mm	2xΦ420mm	2xΦ420mm
Slitting Specifications	20-700mm	20-1100mm	20-1300mm
Slitting speed	10-150m/min	10-150m/min	10-150m/min
Correction accuracy	±0.5mm	±0.5mm	±0.5mm
weight	1100kg	1300kg	1500kg
Dimensions	1250x2100x1300mm	1250x2300x1300mm	1250x2500x1300mm

Performance and Features

1. This machine is a vertical slitting machine.
2. The main control system PLC + man-machine interface taper tension / independent microcomputer, control screen, easy to operate.

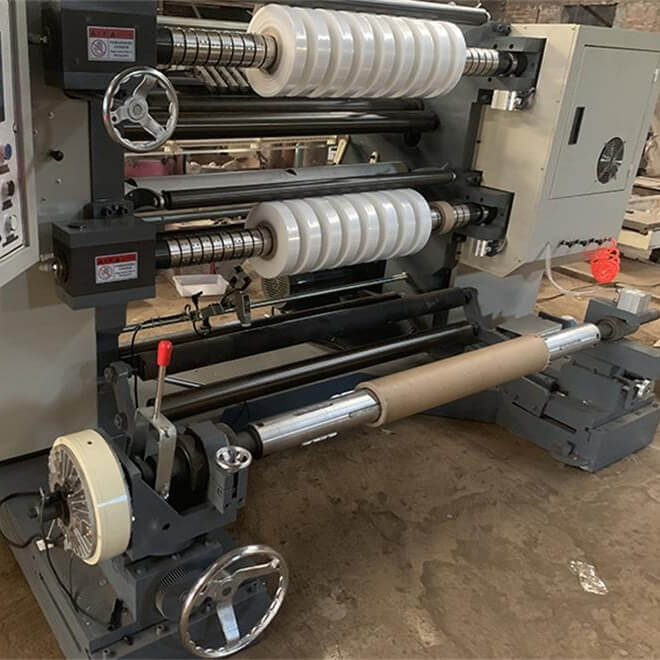

3. Rewinding and unwinding, magnetic tension control.
4. The meter is automatically recorded when the material is sufficient, and the unwinding photoelectricity corrects the deviation.
5. Equipped with side waste air conveying or coiling device.

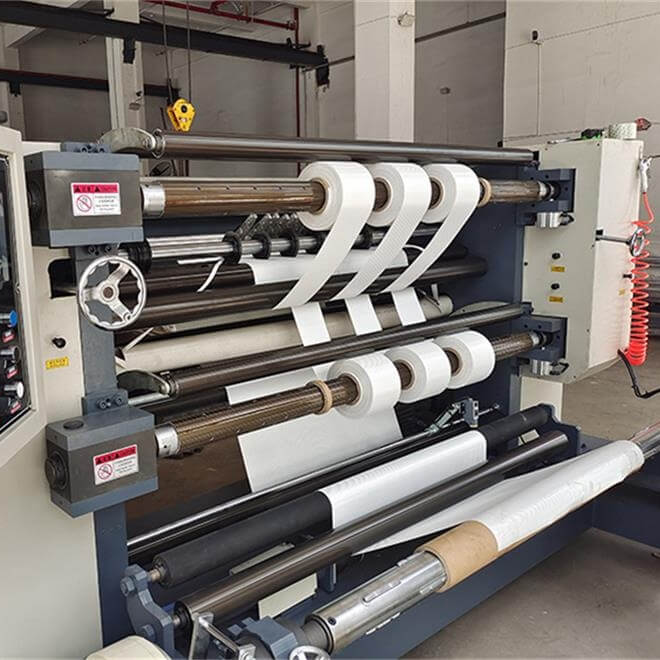

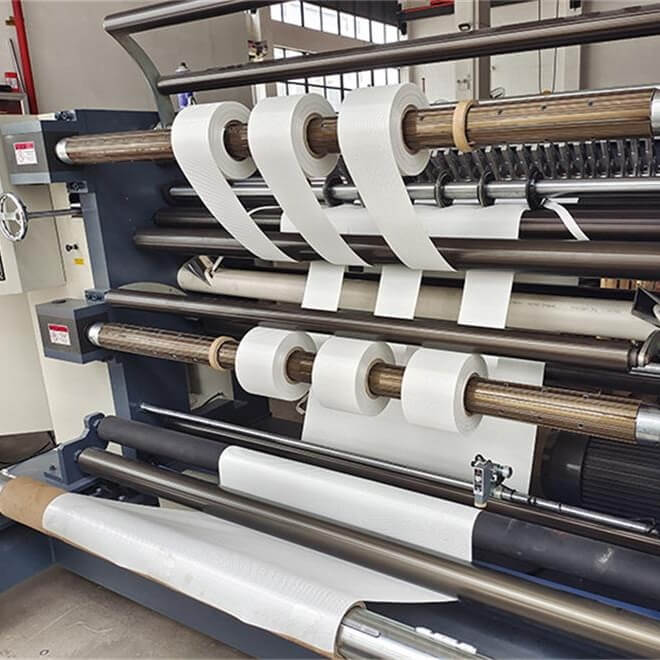

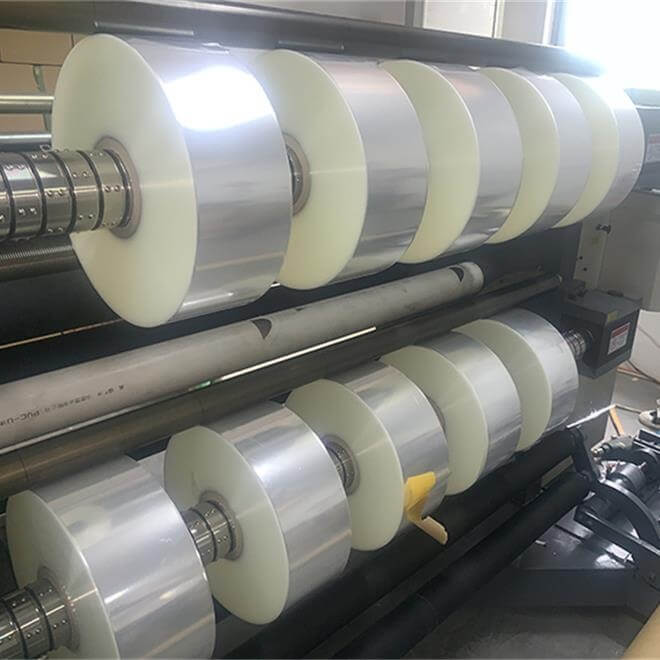

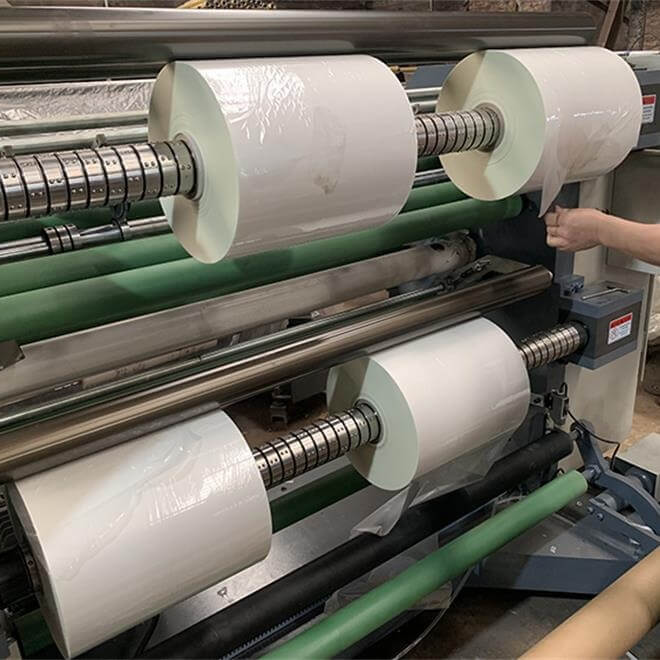

6. Double inflatable shafts are used for winding, and the slitting end faces are flat rolled.

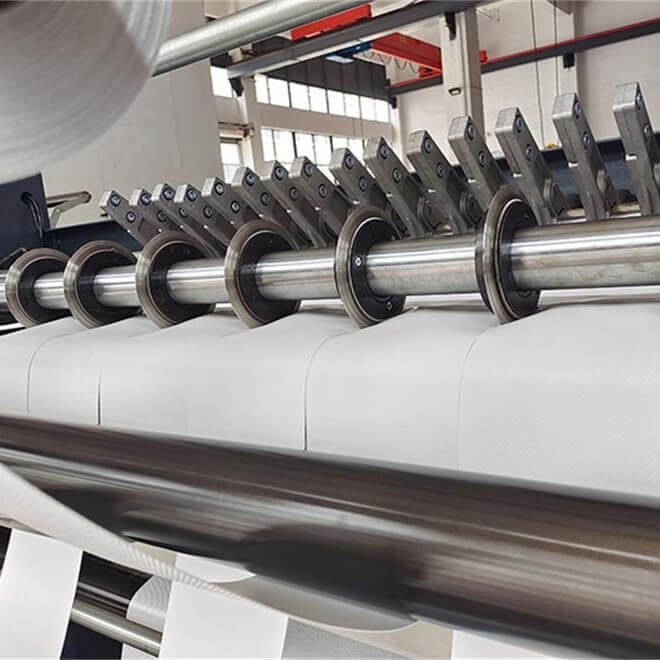

7. A circular knife should be purchased for aluminum foil paper slitting.
