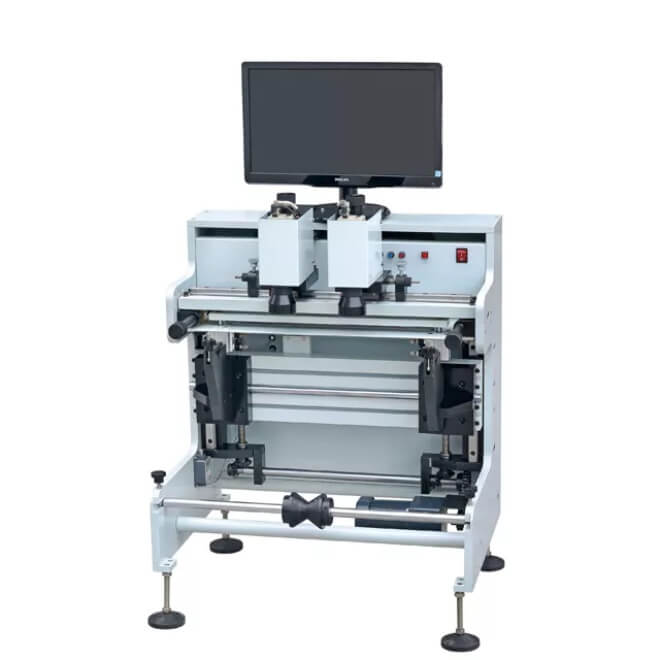

High-End Plate Installation Machine is the high-end product developed towards the customers for wide flexo printing machines. They are mainly used to fulfill the plate operations of the wide flexo printing machines, including rack, plate operation desk, high-definition color video camera, driving mechanism of plate roller lifting gear motor, corresponding control system and other components.
High-End Plate Installation Machine is the high-end product developed towards the customers for wide flexo printing machines. They are mainly used to fulfill the plate operations of the wide flexo printing machines, including rack, plate operation desk, high-definition color video camera, driving mechanism of plate roller lifting gear motor, corresponding control system and other components
| Product name | Flexo Plate Mounting Machine |
| Effective width of the paste plate | 360mm |
| Mandrel diameter | Φ320MM |
| Placing accuracy | ≤±0.05MM |
| Lens resolution | 650 lines |
| Max. lens zoom | 70 times |
| Lens focusing method | Manual zoom manual focus |
| Geared motor drive | about 300mm/min (plate roller) |
| Voltage | 220V |
| Dimension(L*W*H) | 920mm*600mm*1650mm |
| Weight | 160kg |

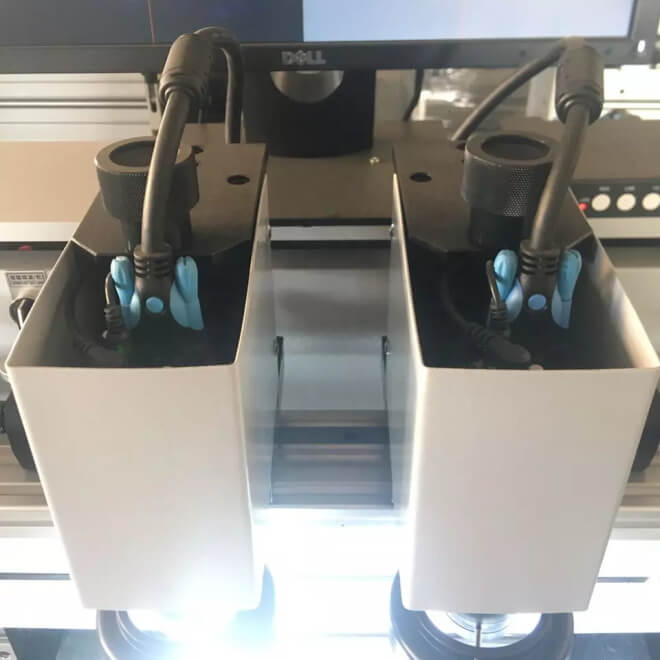

—Present clear images, possess high resolution ratio, and substantially improve the precision of the plate;

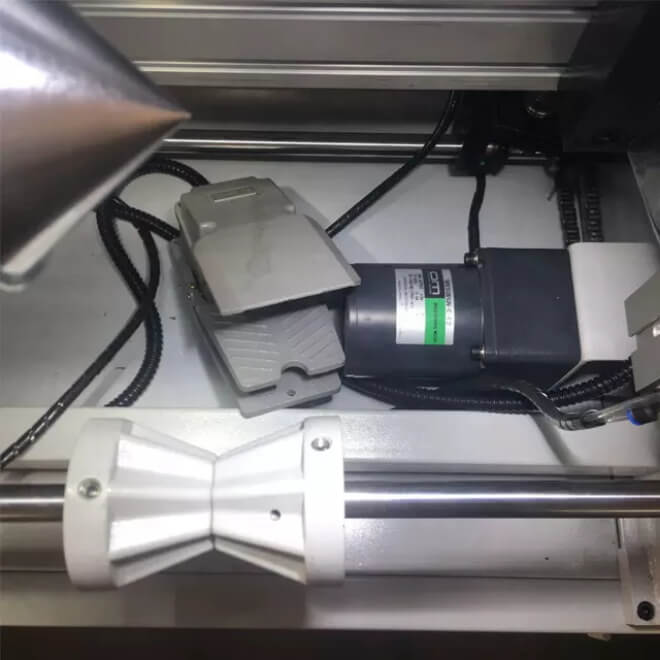

—The lifting of plate roller structure adopts the gear motor drive control, which largely facilitates the operations of the plate;
—The complete machine adopts the centralized control of circuits, which is convenient for operations and has relatively high degree of automation;;
—The high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers.
